Capture and Playback Card

Name: "Capture and Playback Card"
Rating: 5 (111 reviews)

SKU: 4204493041

Model: TC-200N9 SDI

Product Details

Product Specification

Type	e-commerce livestreaming, education & remote teaching，show‑style streaming，talent show streaming Switcher	Model	TC-200N9 SDI
Params	1. Product Overview The TC-200N9 is a professional-grade SDI capture and output card designed for broadcast, live production, video recording and post-production scenarios. It supports ultra-high definition SDI signal acquisition and real-time output, featuring high compatibility, low latency and stable transmission performance to meet commercial and industrial video processing demands. 2. Core Hardware Specifications 2.1 Signal Interface - Interface Type: Standard SDI interface, supports bidirectional capture and output signal transmission - Supported Standards: Compatible with SD-SDI, HD-SDI, 3G-SDI mainstream broadcast protocols 2.2 Resolution & Frame Rate - HD Resolution: 1080i, 1080p@25/30/50/60fps - SD Resolution: 720×480, 720×576 standard definition signals - Supports full frame rate adaptive decoding and output for smooth video transmission 3. Video & Audio Processing - Video Processing: Real-time uncompressed SDI video capture and output, zero frame drop, ultra-low transmission latency - Audio Processing: Supports embedded SDI audio synchronous acquisition and output, realizes perfect audio-video synchronization - Color Sampling: Standard professional broadcast color sampling, restore real and delicate video colors 4. System Compatibility - Operating System: Fully compatible with Windows and macOS mainstream computer systems - Software Adaptation: Plug-and-play with OBS, vMix, Premiere, After Effects and other live streaming and post-production software - Driver Support: Standard driver-free recognition, stable operation without frequent crashes or frame loss 5. Application Scenarios - Professional live broadcast, conference video collection and signal output - Studio program production, video post-editing and material collection - Medical imaging, industrial vision detection and high-precision video acquisition scenarios 6. Physical & Industrial Performance - Industrial Design: High-strength circuit board and anti-interference design, supports long-term continuous operation - Transmission Stability: Anti-static and anti-signal interference performance, ensuring stable signal transmission in complex environments 7. Warranty & Service - Strict industrial production standards, certified with mainstream safety certifications - Standard after-sales warranty, supporting daily commercial and industrial long-term use	Material	PCB
Applicable Industry	Content Creation & Live Broadcast，Corporate & Education，Healthcare，Industrial Vision

Feature

3G-SDI Bidirectional Capture & amp; Output This professional SDI card supports bidirectional video capture and output, fully compatible with SD-SDI, HD-SDI and 3G-SDI broadcast standards. It stably processes 1080P60 full-frame HD signals and standard-definition streams with adaptive frame rate, delivering smooth and reliable broadcast-level signal transmission. Ultra-Low Latency Lossless AV Transmission Adopting uncompressed real-time processing technology, this card achieves zero frame-drop video acquisition and output with ultra-low latency. It supports synchronous decoding of embedded SDI audio and applies professional broadcast color sampling to ensure precise AV synchronization and true-to-life image restoration. Broad System & Software Compatibility Fully compatible with Windows and macOS systems, this plug-and-play card requires no complicated driver installation. It works perfectly with OBS, vMix, Premiere and other mainstream live streaming and post-production software, greatly improving video production efficiency. Industrial-Grade Anti-Interference Stability Featuring high-strength circuit design and anti-static shielding structure, it effectively resists external signal interference in complex environments. It supports 24-hour continuous stable operation without frame loss or signal distortion for long-term professional tasks. Wide-Range Professional Application It adapts to multiple professional scenarios including live broadcast production, conference signal acquisition, studio post-editing and material recording. It also meets high-precision demands for industrial vision inspection and medical image collection.

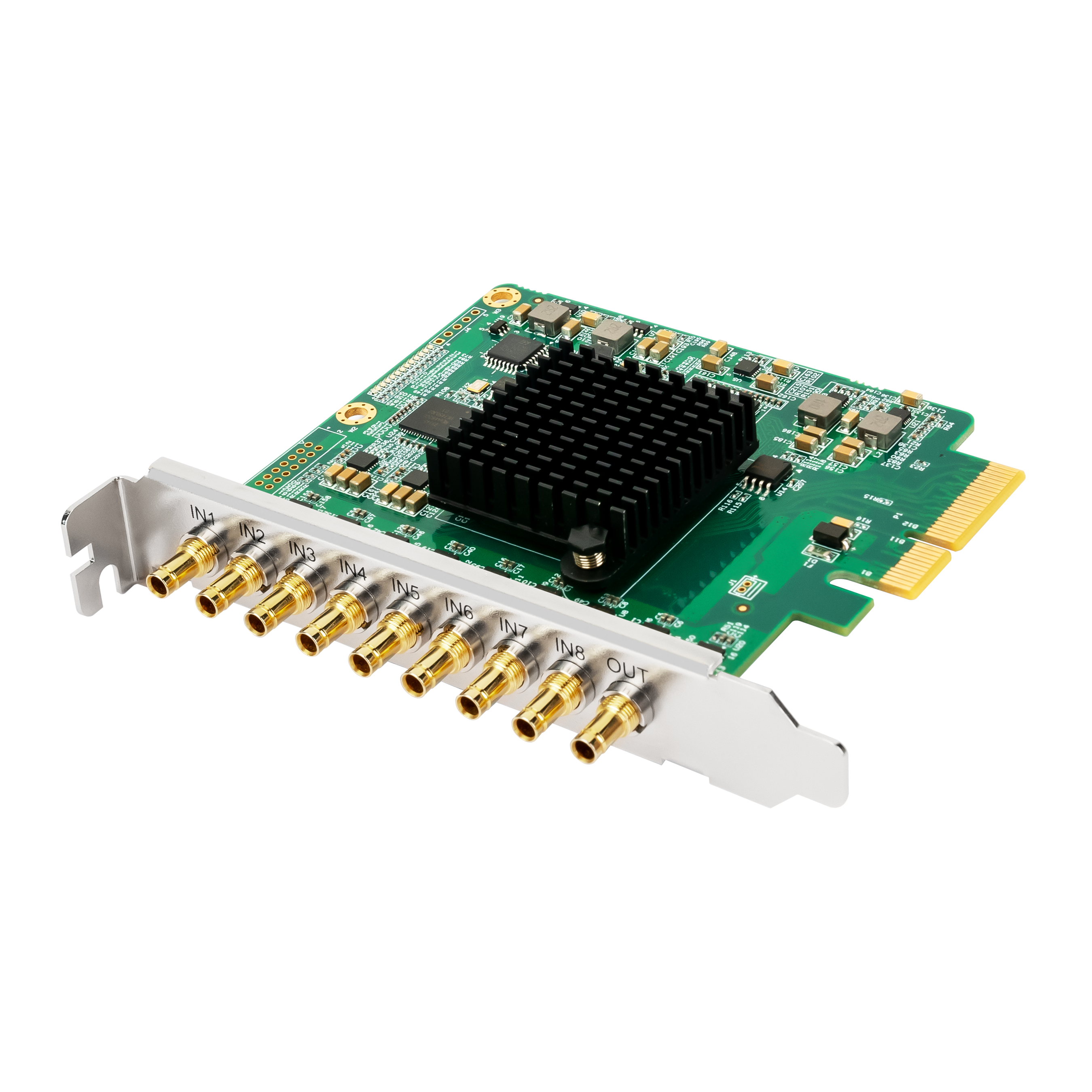

capture card TC-200N9
